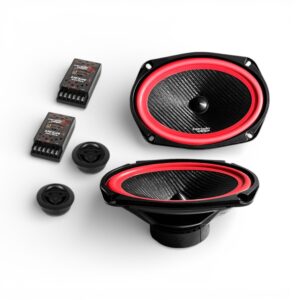

Cerwin Vega H69C 6×9″ 450w/150rms 2way Component System

Cerwin Vega H69C 6×9″ 450w/150rms 2way Component System

The V69C features a 6″ x 9″ woofer, 2.5″” midrange, and 1″” tweeter, each constructed with high-performance materials for unmatched sound clarity. The hybrid carbon fiber-polypropylene cone provides a responsive bass and midrange response, while the Santoprene™ rubber surround ensures greater excursion and durability. The neodymium tweeter magnet delivers crisp, detailed high frequencies, bringing the entire frequency range to life with clarity and precision.

Specifications

Power: 160W RMS/480W MAX
Frequency Response: 91Hz-20KHz
Sensitivity (1W/1M): 90dB
Nominal Impedance: 4Ω
Free Air Resonance: 68Hz
Overall Diameter: 6.40″” (162.5mm) x 9.29″” (236mm)
Cut-Out Diameter: 5.93″” (150.5mm) x 8.68″” (220.5mm)
Mounting Depth: 3.20″” (81mm)

SPEAKER SIZE – 6″”x9”
SPEAKER TYPE – COMPONENT SET
BI-AMPABLE YES
OHMS (PER COIL) – 4
NUMBER OF VOICE COILS – SINGLE
CONE MATERIAL – POLYPROPYLENE
DIAPHRAGM MATERIAL – SILK
BASKET MATERIAL – STAMPED STEEL
MAGNET TYPE – WOOFER FERRITE / TWEETER NEODYMIUM
INCLUDES SPEAKER GRILL – YES
SURROUND MATERIAL – SANTOPRENE
CROSSOVER INCLUDED – YES – EXTERNAL
POWER HANDLING RMS: 160W
