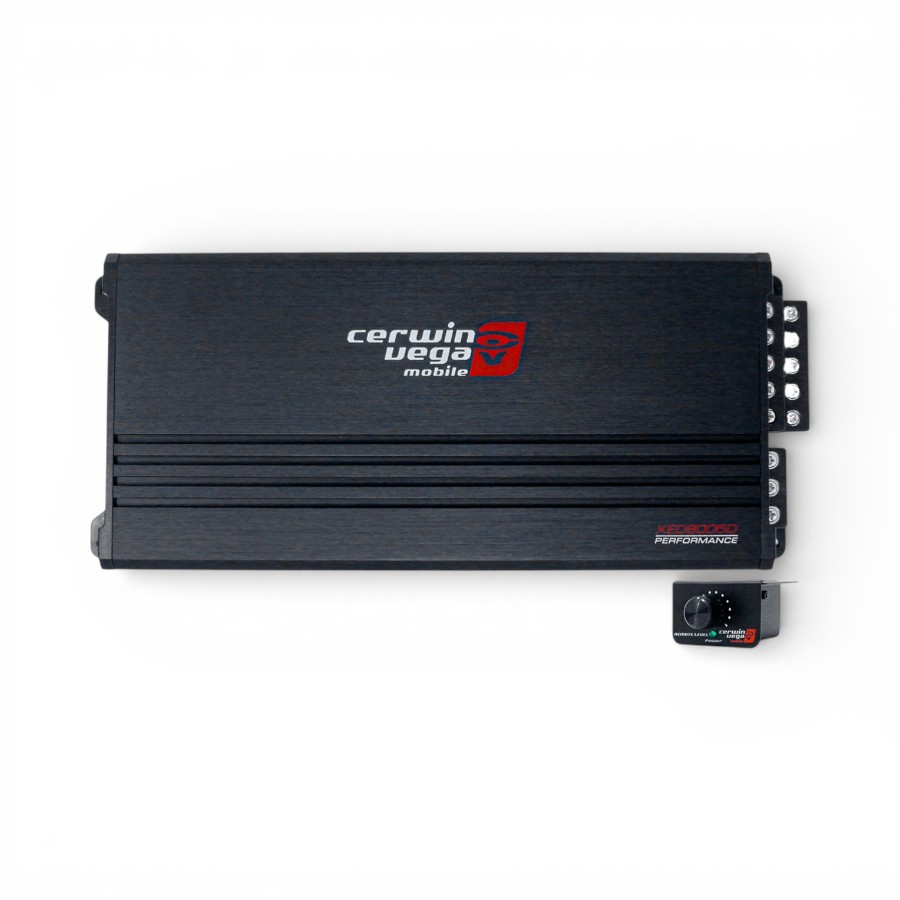

Cerwin Vega XED8005DV2 5-Channel Class-D Amplifier 1000W Max

Cerwin Vega XED8005DV2 5-Channel Class-D Amplifier 1000W Max

POWER RATING

FREQUENCY RESPONSE (HZ): 35HZ – 350HZ
RMS POWER PER CHANNEL 4Ω 65W X 4 & 200W X 1
RMS POWER PER CHANNEL 2Ω 90W X 4 & 300W X 1

POWER SUPPLY

Power Supply: Full PWM
Power Supply Threshold: 10.0V-16.0V (DC)
Idle Current: (0.7A)

DISTORTION

THD 4 (100Hz @4Ω): 70
Bandwidth (-3dB): 10Hz-30KHz/10Hz-250Hz

CROSSOVER (-12dB/Oct)

Variable High-Pass: 35Hz-250Hz
Variable Low-Pass: 35Hz-250Hz
Variable Sub-Sonic:

FUSE RATINGS

ATC: 25A x 2 (Inside)

DIMENSIONS

L x W x H: 10.3”x 4.7”x 1.8” (260mm x 120mm x 46.5mm)

FEATURES

Selectable X-Over Front & Rear: Flat/High Pass
Bass Boost: 0dB-12dB
LED Power/Protect Light Indicator
Bass Control Included
