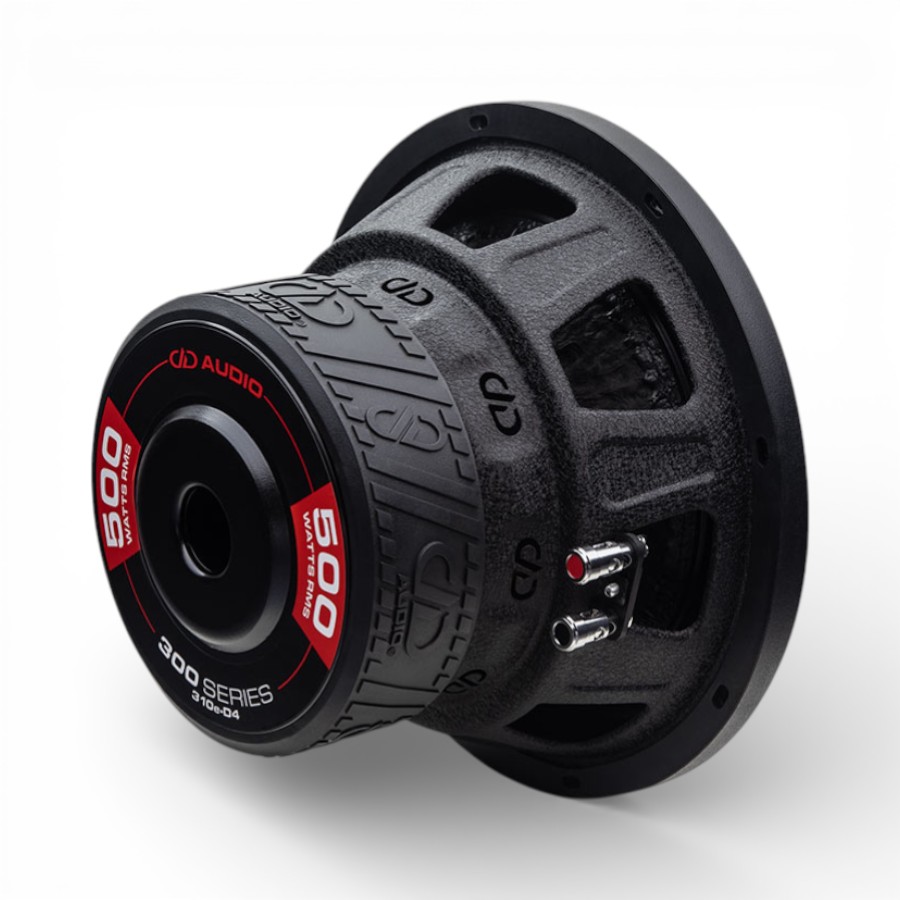

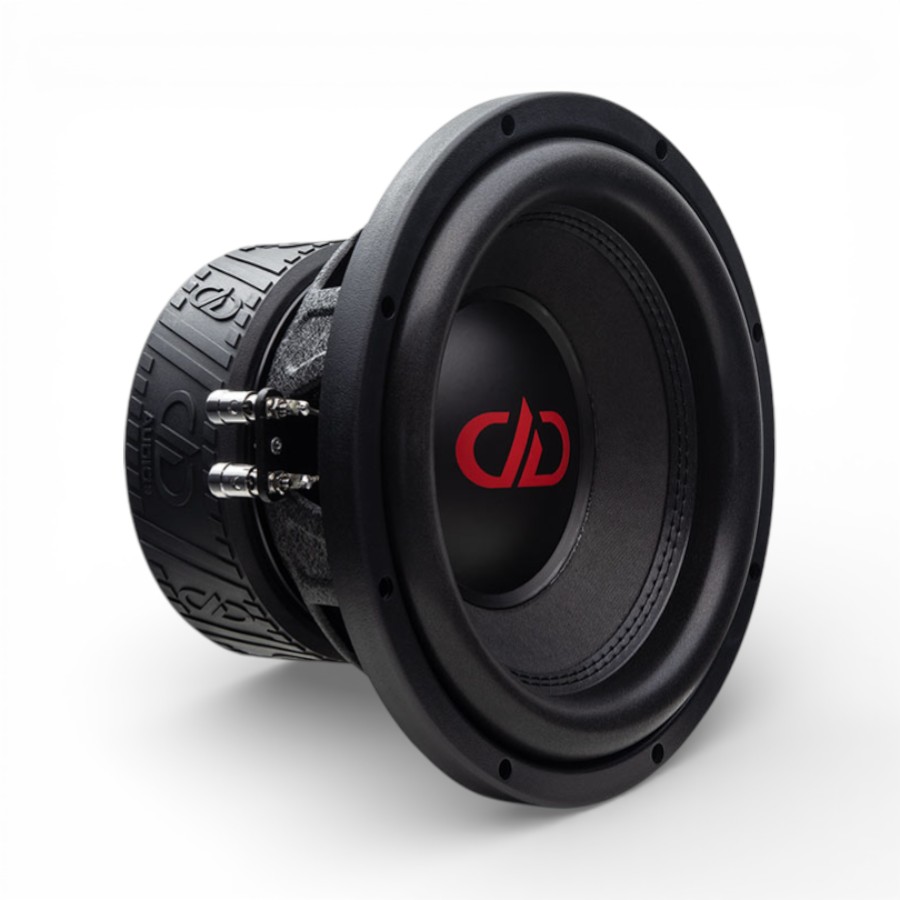

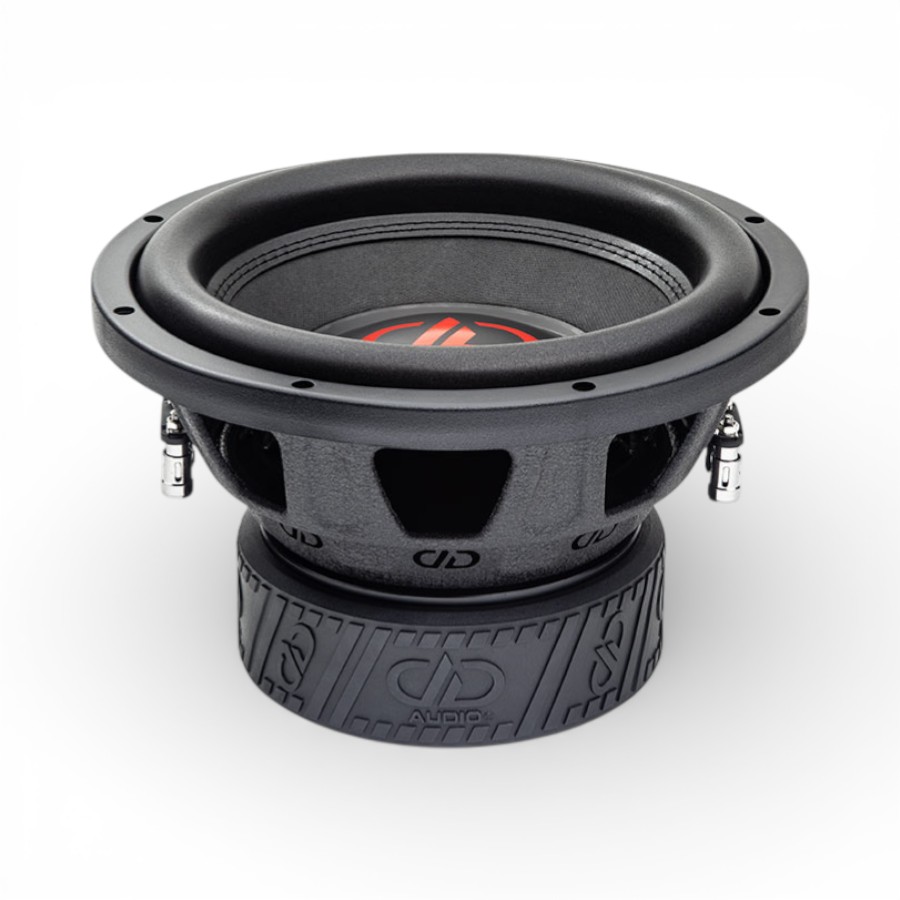

Digital Design DD-310 D2 300 series 10″ 500rms D2 Subwoofer

Digital Design DD-310 D2 300 series 10″ 500rms D2 Subwoofer

The all new 300 Series “e” revision comes to us with 10” and 12” models featuring 2.5” voice coils and 100oz magnet motors. These new drivers bring increased sensitivity, Xmax, and excursion control to deliver powerful bass from higher efficiency enclosures on 250 to 500 Watts RMS. Upgrades to this series include cones with fiberglass loaded non-pressed treated paper, taller and thicker EROM surrounds with black stitching, heavier dual layering with integrated tinsel leads, and new basket and motor boot designs elevating cosmetics with DD branding.

Speaker Size (In): 10
Watts RMS: 500
Watts Peak: 1500
Impedance: D2 / D4
VCD (In): 2.5
Piston Diameter (In): 8
Fs (Hz): 39
Qms: 5.18
Qes: 0.688
Qts: 0.61
Vas (Liters): 11.43
BL (TM): 24
Xmech (MM): 30
Xmax (MM): 14
Frame OD (In): 10
Frame OD w/Gasket (In): 10.4
Mounting Diameter (In): 8.93
Mounting Depth (In): 6
Motor Diameter (In): 6.125
Motor Depth (In): 2.5
Magnet Weight (Oz): 100
Woofer Displacement (CuFt): 0.07
Ported Enclosure (CuFt): 1.25 – 1.5
