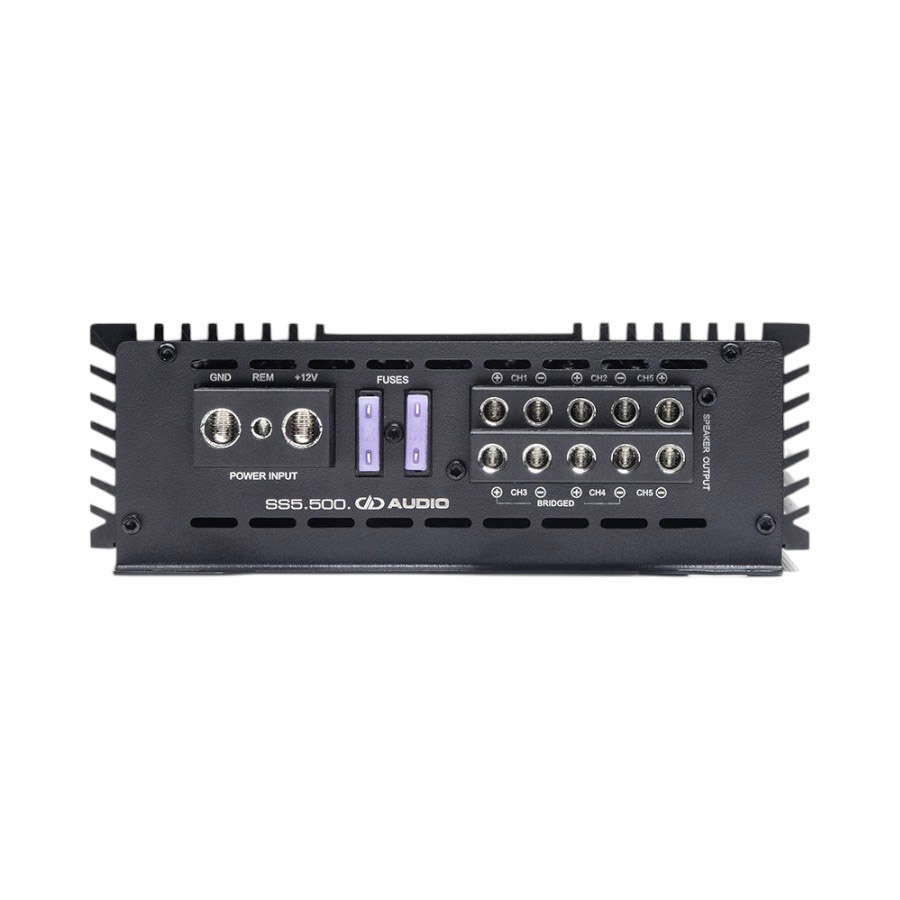

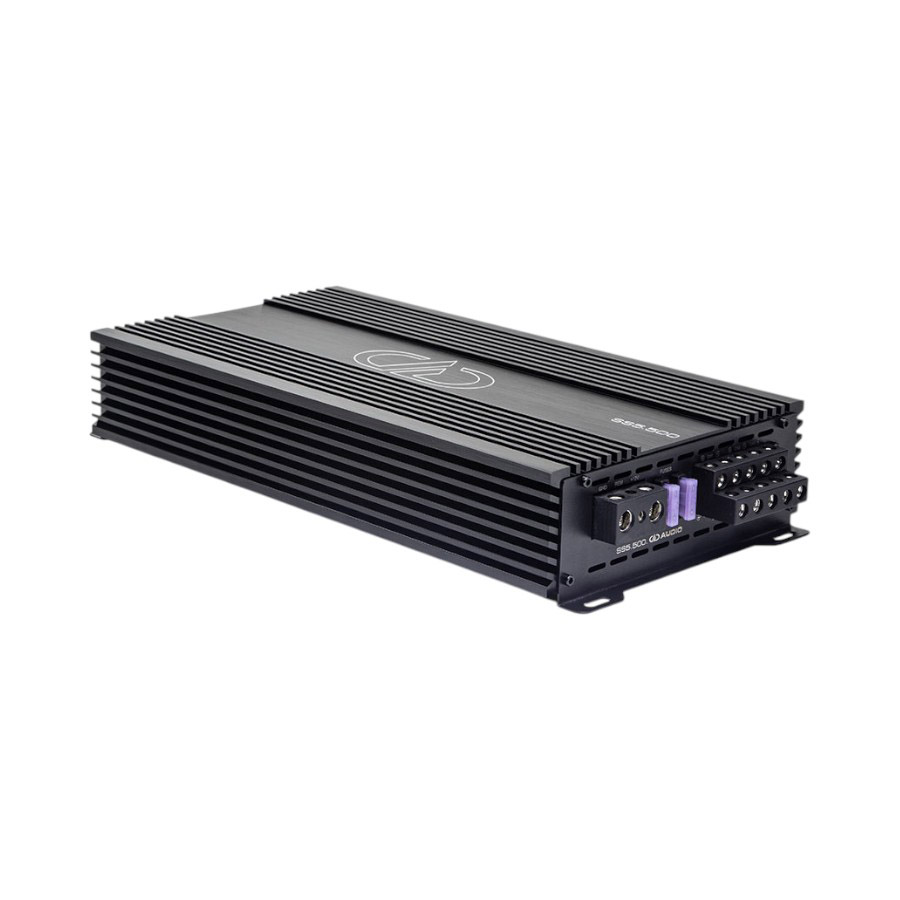

Digital Design DD-SS5.500 5channel 50rms Amplifier

Digital Design DD-SS5.500 5channel 50rms Amplifier

Five channel systems can be easily configured and tuned with the new SS5.500. This multichannel amp features an AB Class 4 channel paired to an efficient D Class subwoofer mono channel giving your system the best of both circuit designs.

The AB Class amp features Elna capacitors, precision resistors and high specification transistors delivering a precise, transparent response to your mid and high frequency drivers. AB Class amps are renowned for their overall warmth, clarity and control. Your soundstage will be vibrant and spatial, making your drive-time something to look forward to every day.

The low frequency section is a high speed class D featuring International Rectifier components coupled to a high current toroidal power supply, making the most efficient power from your vehicle’s stock electrical system. Powerful, deep and impactful bass will fill your space without having to modify your stock electrical system.

High fidelity audio is within the realm of every car with the SS5.500.

Operating Voltage: 9 – 16
Test Voltage: 14.4
Input Channel(s): 6
Output Channel(s): 5
Continuous Wattage @4ohm: 80 x 4
Continuous Wattage @2ohm: 120 x 4
Continuous Wattage @1ohm: 500 x 1
Max Current Draw (Amps): 100
RCA Input Voltage Sensitivity: 8 – 0.2
High-Level Input Voltage Sensitivity: 20 – 1.1
RCA Input S/N: > 95
Damping Factor: > 100
THD: < 1.0%
Frequency Response (Hz): 20 – 20k
High Pass Filter: 20 – 5k
Sub-Sonic Filter: 10 – 50
Low-Pass Filter: 50 – 5k
Remote Control: Remote Included in Box
Power Wire Gauge: 4
Speaker Wire Gauge: 12
Dimensions (Inches): 13.5 x 7.3 x 2.4
Dimensions (MM): 340 x 185 x 60
