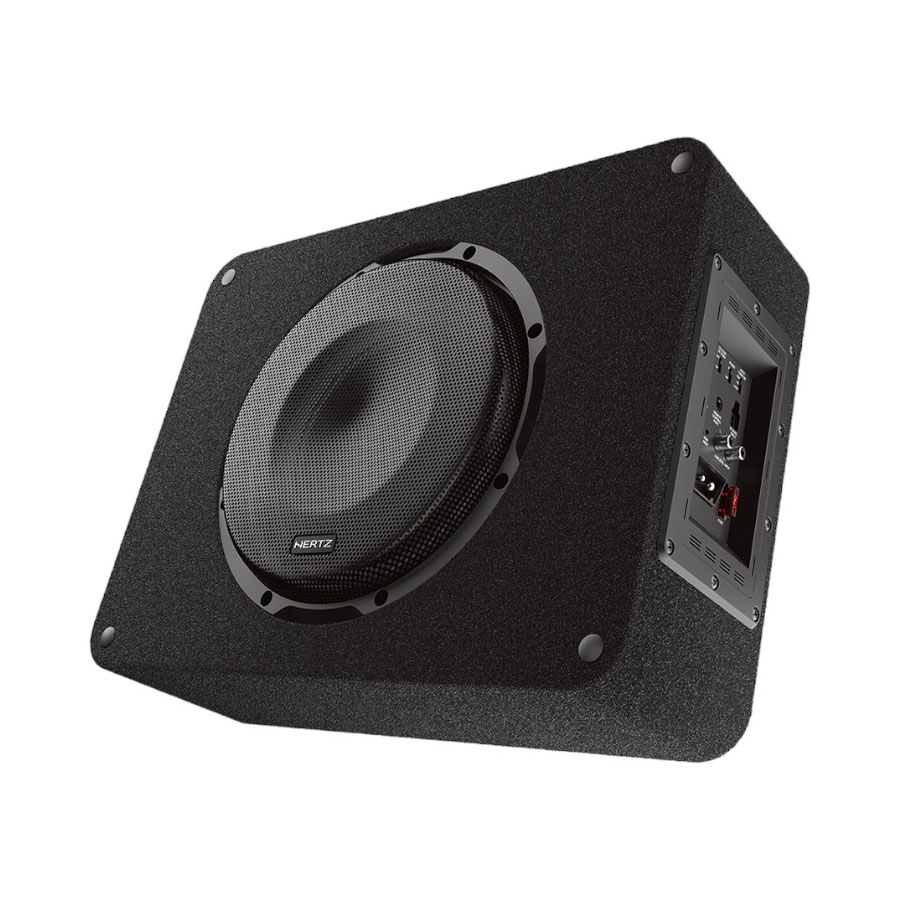

Hertz CBA 250 Cento Series 10″ Flat Active Subwoofer & Enclosure

Hertz CBA 250 Cento Series 10″” Flat Active Subwoofer & Enclosure

250 (10) mm (in.) | 500 W | 0.4 Ohm | Active sealed subwoofer box

Hertz CBA 250 active subwoofer box, with the 10-inch driver, features a dedicated high-performance amplification module that enhances all the passive box technologies, such as the 2S²(2 Sides / 2 Sounds) design, the Plug & Play terminal block and ultra-compact size. The SSP (Sub Smart Plug) terminal block is provided with a single Plug & Play connector to be able to disconnect the box easily and safely. The amplification module, with power outputs of 250W RMS, is developed with he-li technology (high efficiency / low impedance), which thanks to the absence of the DC-DC voltage booster reach the impressive 90% efficiency level, very close to the theoretical limit of the D-Class. The Butterworth low pass filter at 12dB/Oct. with variable cut-off frequency (50-200 Hz) can be bypassed, when used with an external processor with pre-out output dedicated to the sub. The adjustable bass-boost control (0 ÷ 6 dB) at 45 Hz allows the user to emphasize the response on the lower side of the spectrum and the Phase control (0 – 180°) completes the equipment. The high-level speaker-in input on the multi-pole connector eases the integration with OEM audio systems while the low-level input on RCA is dedicated to the connection with after-market sources.

Size mm (in.) 250 (10)
Power Handling – Continuous W 250
Power Handling – Peak W 500
Impedance Ohm 0.4
Design Active sealed subwoofer box
Voice Coil Ø 60 (2.36)
Frequency Response Hz 20 – 200
Magnet size D x d x h mm (in.) 140 x 70 x 30 ( 5.51 x 2.76 x 1.81)
Magnet High density flux ferrite
Cone Pressed Paper
