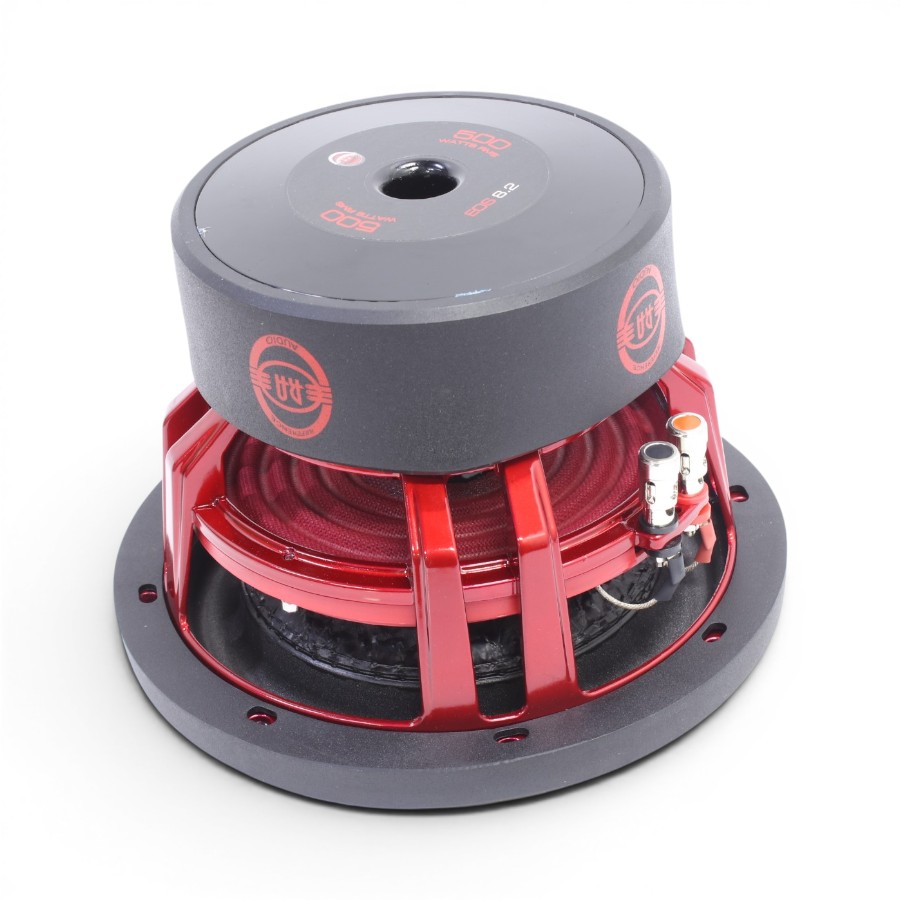

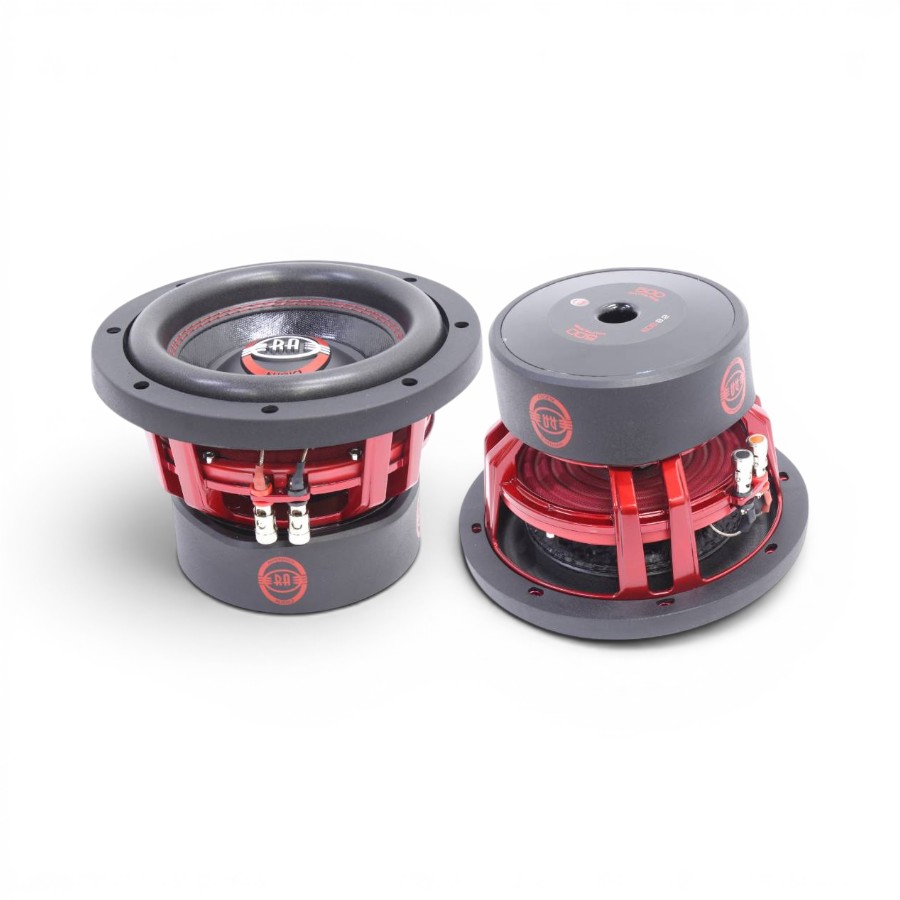

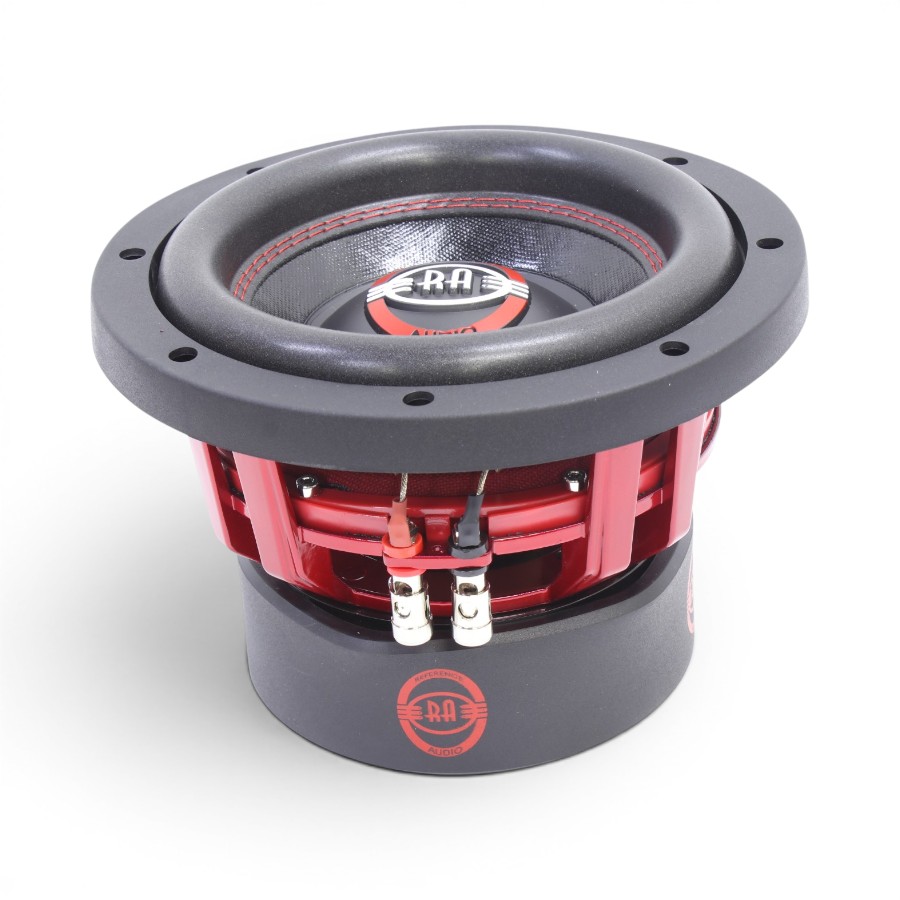

Reference Audio RA-EOS8.2 8″ 500w rms 2ohm Subwoofer

Reference Audio RA-EOS8.2 8″ 500w rms 2ohm Subwoofer

The Reference Audio EOS 8 Inch Subwoofer is built for strong, compact bass performance in car audio systems. Featuring a cast aluminium basket, non-pressed paper cone, high-density foam edge and a 2 inch aluminium voice coil, this subwoofer is designed to deliver solid low-frequency output while remaining suitable for installations where space is limited.

Features & Specifications

Model: EOS 8.2
8 Inch powerful subwoofer
Nominal power handling: 500W
Sensitivity: 85dB
Frequency response: 50Hz – 1000Hz
Overall dimensions: Ø220mm x 152mm
Cone material: Non-pressed paper
Basket: Aluminium
Cast aluminium basket for strength and durability
High density foam edge
PP dust cap
2 Inch aluminium voice coil
Voice coil diameter: 50.95mm
Voice coil height: 28mm
Magnetic gap height: 8mm
Aluminium voice coil bobbin
4 Layer voice coil design
94.4oz ferrite magnet structure
Nominal impedance: 2×2
DC resistance: 2×1.8
Suitable for compact subwoofer installations
Designed for powerful bass response in car audio systems
