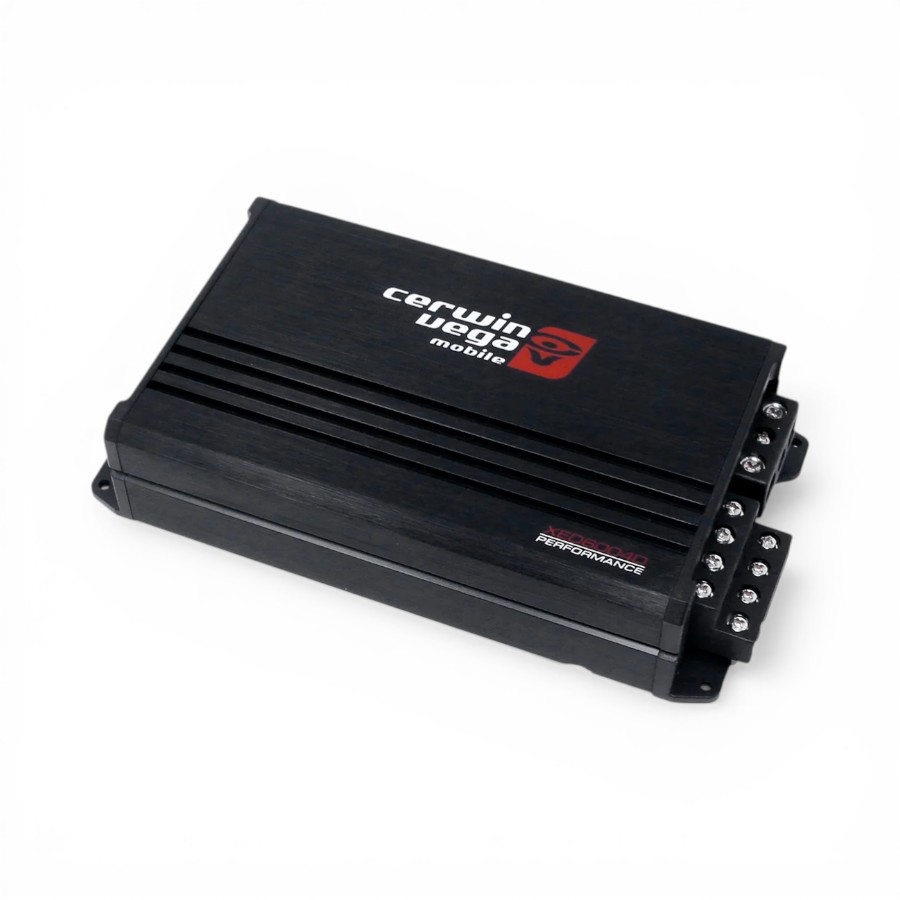

Cerwin Vega CV-XED6004 XED Series 80rms x 4ch 4ohm Amplifier

Cerwin Vega CV-XED6004 XED Series 80rms x 4ch 4ohm Amplifier

4-Channel Full Range Digital Amplifier

Power Rating (RMS)

FREQUENCY RESPONSE (HZ): 35HZ – 350HZ
RMS POWER PER CHANNEL 4Ω 80W X 4
RMS POWER PER CHANNEL 2Ω 120W X 4

Power Supply

Power Supply: Full WPM
Power Supply Threshold: 10.0V-16.0V (DC)
Idle Current: (0.7A)

Distortion

THD 4 (1KHZ @4Ω): 0.1%
S/N RATIO (A WEIGHTED @1W): -85dBA
S/N RATIO (A WEIGHTED @FP): -101.1dBA

Input Sensitivity

Low Level Input: 250mV-10.0V
High Level Input: 1.3V~>20.0V

Input Impedance

Low Level Input: 10KΩ
High Level Input: 100KΩ

Output Stage

Output Impedance: 2Ω
Damping Factor (50Hz@4Ω): >70
Bandwidth (-3db): 10Hz-3KHz

Crossover (1-12dB/Oct)

Variable High-Pass: 35Hz-250Hz
Variable low-Pass: 35Hz-250Hz

Fuse Rating

2 x 25A (Inside)

Dimensions

Length x Width x Height: 7.1”x4.7”x1.8” (180mm x 120mm x 46.5 mm)
