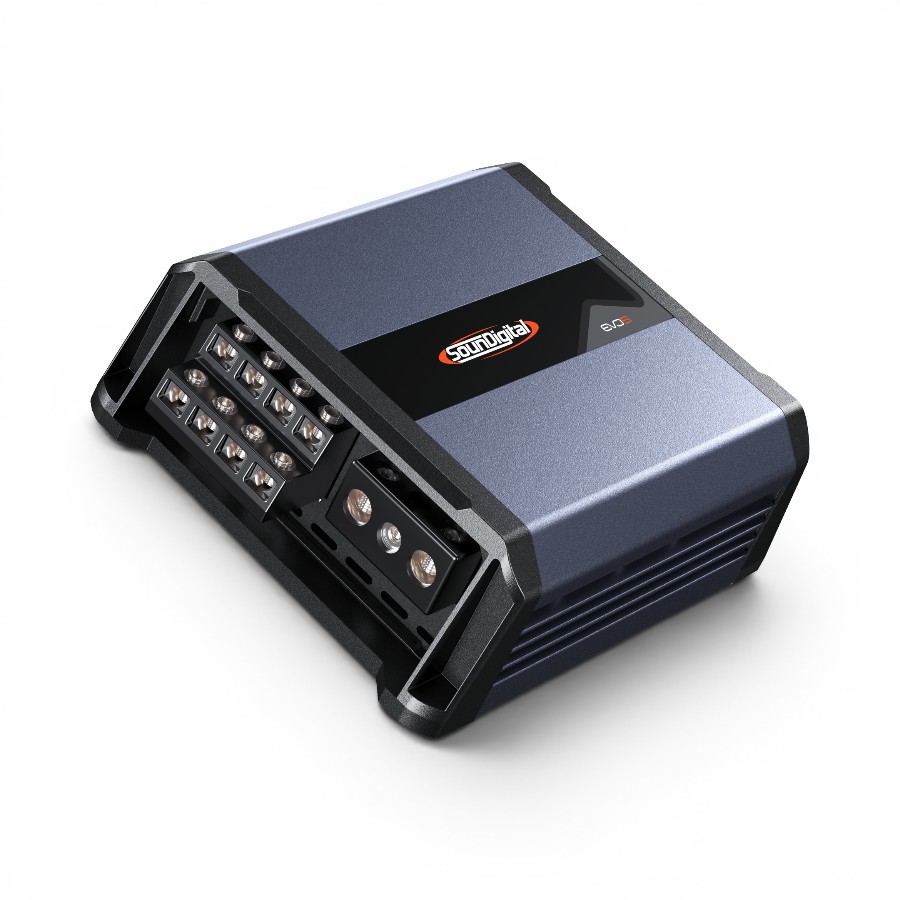

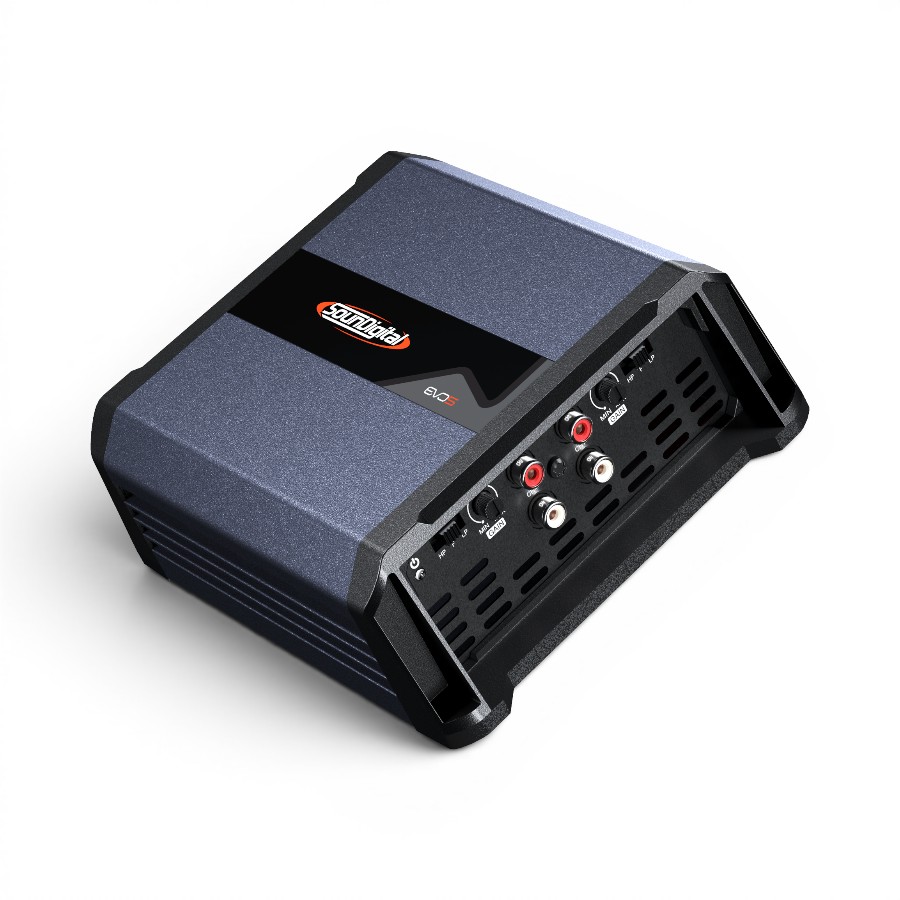

SounDigital SD1200.4 EVO 5 Evo 5 4 Channel Digital Amplifier 4x300w rms

SounDigital SD1200.4 EVO 5 Evo 5 4 Channel Digital Amplifier 4x300w rms

Power @ 1Ω: 4 X 300 WRMS
Power @ 2Ω: 4 X 198 WRMS
Power @ 4Ω: 4 X 130 WRMS

Bridge Power @ 2Ω: 2 X 600 WRMS
Bridge Power @ 4Ω: 2 X 396 WRMS

Frequency Response (-3dB): 5Hz ~ 22kHz
Low Pass Filter (12dB/oct): 80Hz
High Pass Filter (12dB/oct): 80Hz
Operating Voltage: 10V ~ 16V
SNR: 87dB
Input Sensitivity (RCA): 0.2V ~ 2V
Current Draw (music): 59A
Current Draw (max.): 118A
Total Efficiency: 81%
Damping Factor: 200
Power Cable: 16mm² (5 AWG)
Speaker Cable: 2 x 2mm² (14 AWG)
Recommended Fuse (music): 80A
Recommended Battery (minimum): 80Ah

Width: 6.7″” / 12.1 cm
Length: 5.4″” / 17 cm
Height: 2.2″” / 5.48 cm
Weight: 2.36 lb / 1,07 kg
