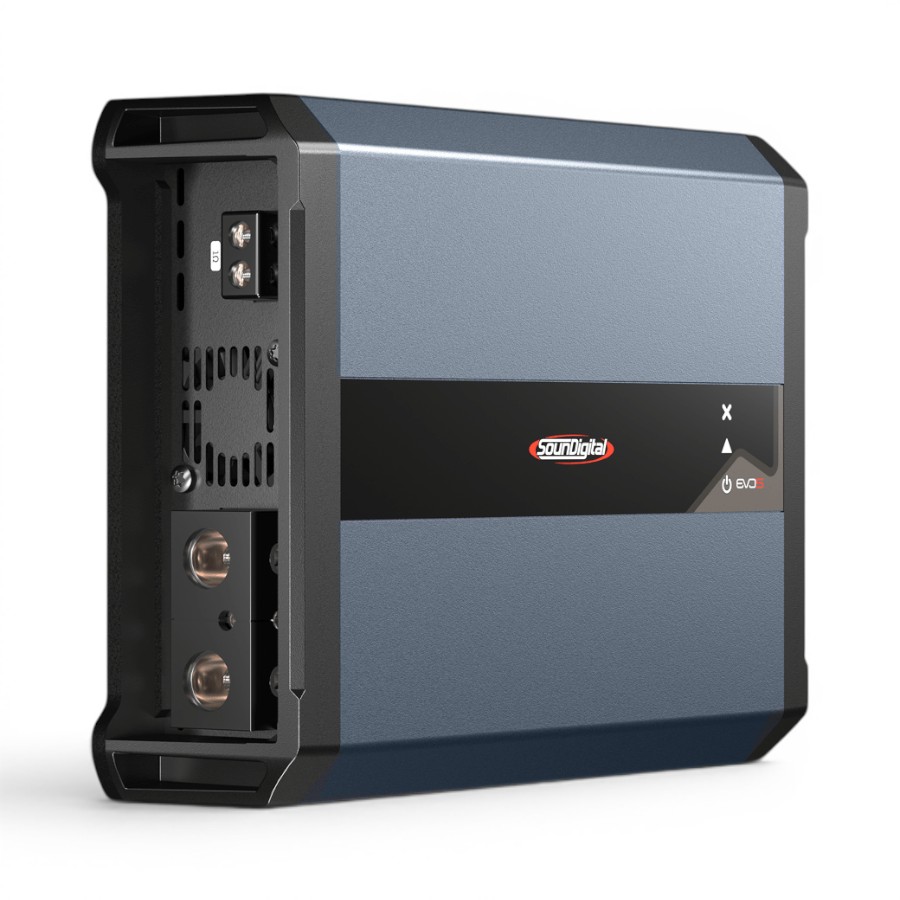

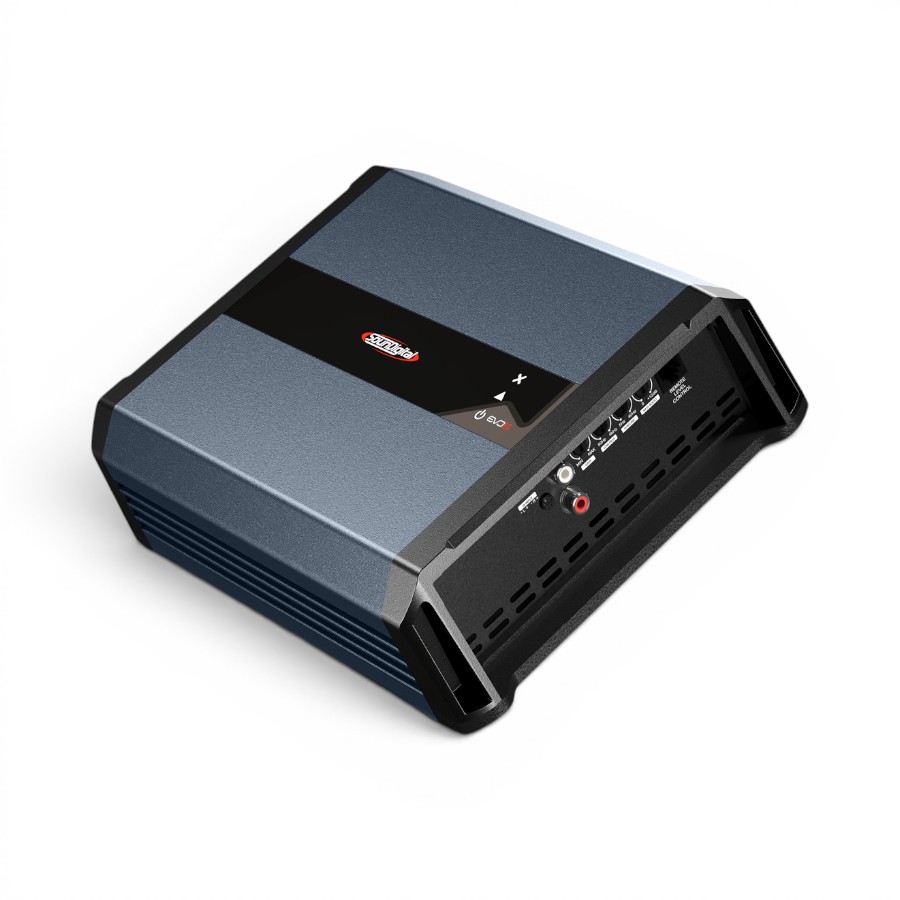

SounDigital SD5000.1 EVO 5 Class D 5000rms 1ohm Amplifier

SounDigital SD5000.1 EVO 5 Class D 5000rms 1ohm Amplifier

The 5000.1 EVO 5 is a compact, modern amplifier that delivers 5000W RMS of power distributed over 1 channel.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Power at 1 Ohm: 1 × 5000W RMS
Power at 2 Ohms: 1 × 3300W RMS
Power at 4 Ohms: 1 × 2178W RMS

Frequency Response: 5Hz–20kHz
Adjustable Subsonic Filter: 5Hz–80Hz at 12dB per octave
Adjustable Low-Pass Filter: 50Hz–20kHz at 12dB per octave
Bass Boost: 0–12dB at 50Hz
Signal-to-Noise Ratio: 90dB
Damping Factor: Greater than 2000
Operating Voltage: 8V–16V
RCA Input Sensitivity: 0.2V–2V
High-Level Input Sensitivity: 1.5V–15V
Total Efficiency: Up to 86%
Typical Music Current Draw: 230A
Maximum Current Draw: 461A
Recommended Power Cable: 50mm² / 0 Gauge
Recommended Speaker Cable: 2 × 10mm² / 7 Gauge
Recommended Fuse: 250A
Minimum Recommended Battery Capacity: 250Ah
Dimensions: 250 × 180 × 63.2mm
Weight: 3.10k
