SounDigital SD400.4 EVO 6 100w rms x 4 channel Amplifier

R1,850.00

In stock

SKU: SD400.4 EVO 6 Category:
Description

SounDigital SD400.4 EVO 6 100w rms x 4 channel Amplifier

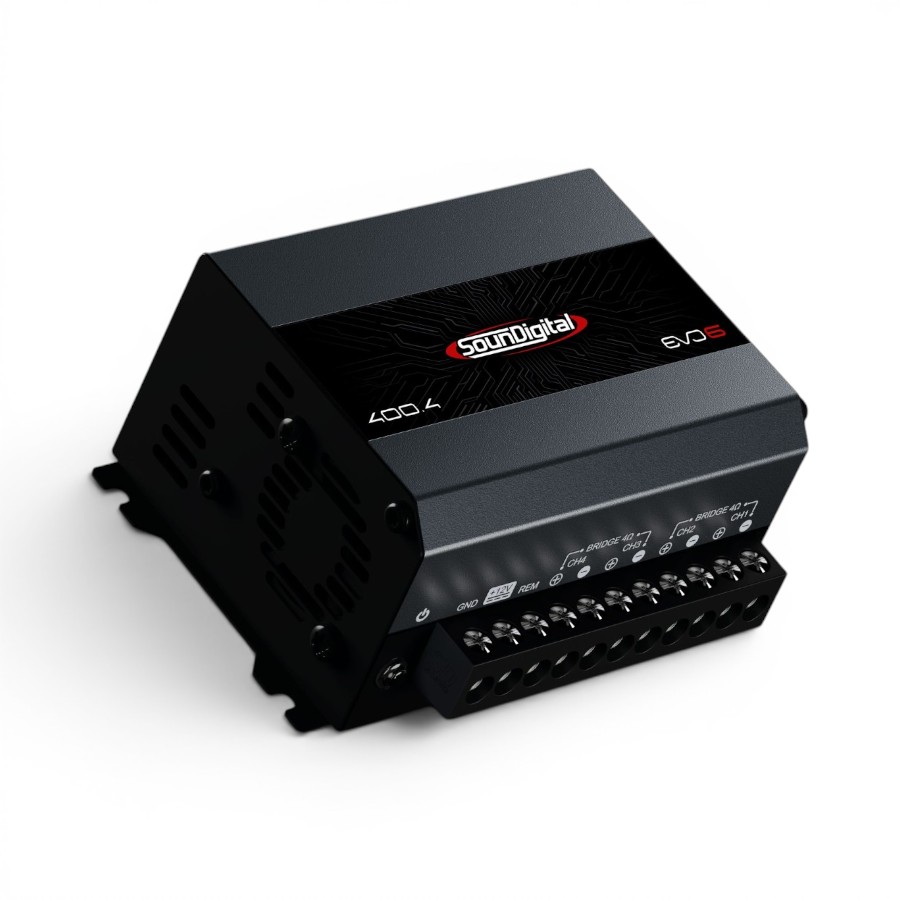

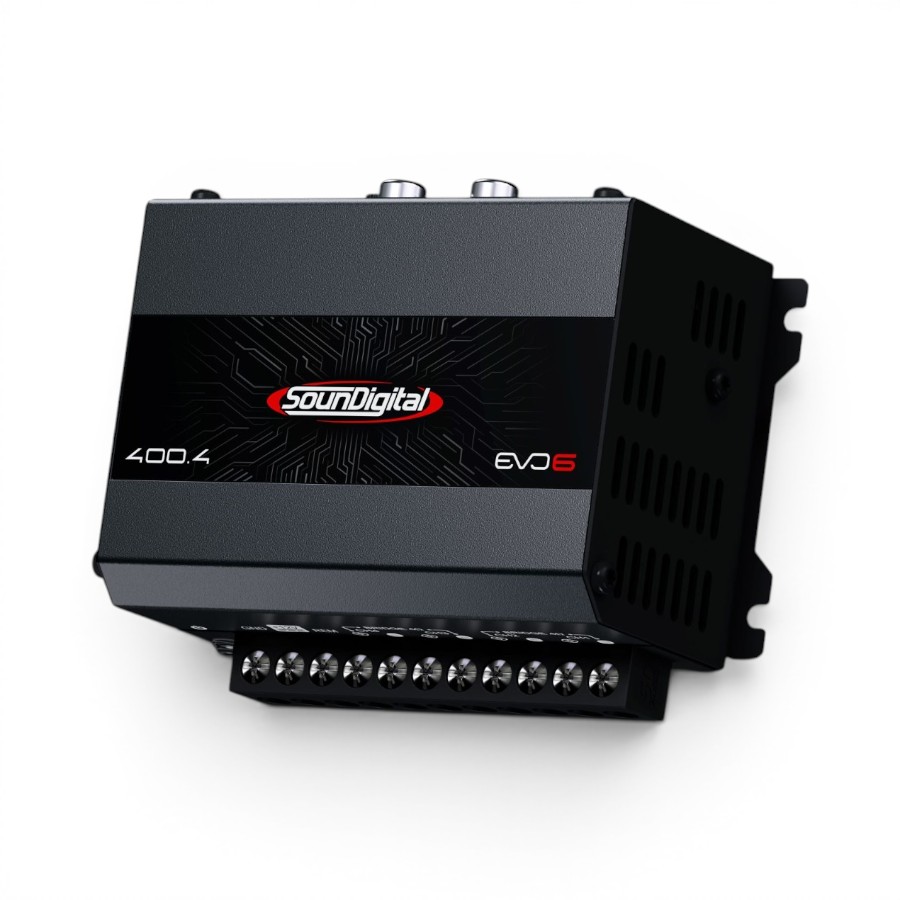

The 400.4 EVO6 is a compact, modern amplifier that delivers 400W RMS of power over 4 channels.

The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Power @ 4Ω: 4 x 66W RMS
Power @ 2Ω: 4 x 100W RMS
Bridge Power @ 4Ω: 2 x 200W
Bridge Power @ 2Ω: N/A

Frequency Response (-3dB): 8Hz ~ 20kHz
Low Pass filter (12dB/octave): 80Hz
High Pass filter (12dB/octave): 80Hz
Operating Voltage: 9V ~ 16V
SNR: 94dB
Input Sensitivity (RCA): 0.2V ~ 2V
Current Draw (music): 20A
Current Draw (max.): 40.5A
Total Efficiency: 78%
Damping Factor (@100Hz nominal impedance): 200
Power Cable: 6mm² (9 AWG)
Speaker Cable:2 x 1.5mm² (15 AWG)
Recommended Fuse (music):25A
Recommended Battery (minimum):40Ah
Width:3.4″
Length: 4.2″
Height: 1.8″
Weight: 0.963 lb
